This equipment is equipped with an inverted bottle washing and blowing machine according to customer requirements. It is equipped with a complete set of features such as a dedicated water tank and a washing pump for empty bottle cleaning. After cleaning with hydrogen peroxide or disinfectant, the cleaning solution can be returned to the circulating water tank, which can achieve multiple uses of disinfectant and reduce usage costs. After the bottle washing is completed, configure a bottle mouth and use air pressure to blow dry the empty bottle to achieve sterile filling requirements.

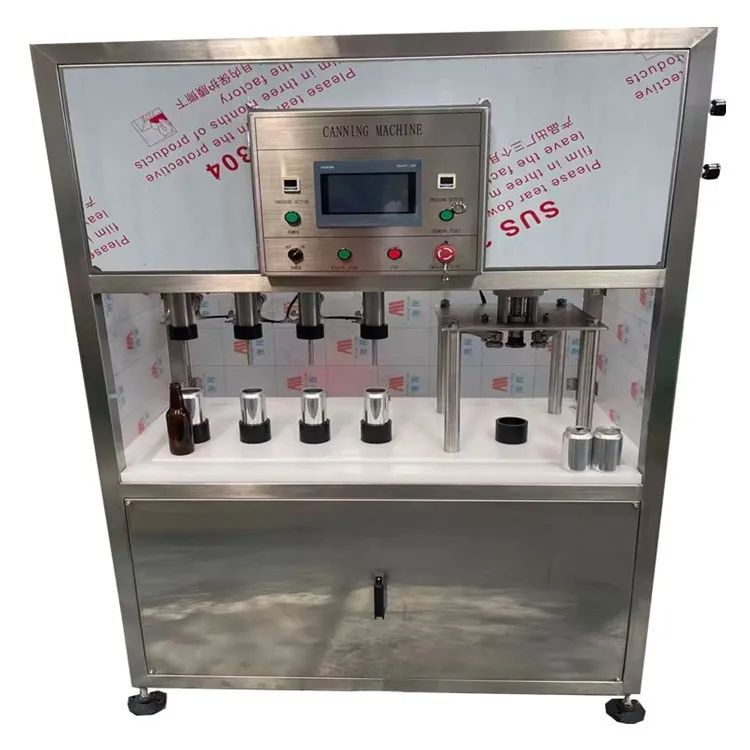

This equipment is designed with 4 filling heads and 1 sealing machine according to customer requirements. Four filling heads are used to control the filling of customers' cans. One sealing machine is used for sealing cans and bottle shapes.
Parameters As Follows
|
Model |
2 heads filling and sealing machine |
4 heads filling and sealing machine |
|
Workbench size |
800*500mm |
2300mm x 270mm |
|
Workbench height |
850mm |
850mm |
|
Machine dimensions |
1000*650*2000 |
2300mm x 600mm x 2200mm |
|
Maximum stroke of cylinder piston |
300mm |
350mm |
|
Net weight |
150Kg |
270Kg |
|
Capacity |
180-260 cans/h |
300-500 cans/h |
|
Filling method |
Upright filling |
Upright filling |
|
Alcohol source pressure |
0.2-0.3Mpa |
0.2-0.3Mpa |
|
Alcohol source temperature |
1-4℃ |
1-4℃ |
|
Air supply pressure |
0.6-0.8Mpa |
0.6-0.8Mpa |
|
CO2 pressure |
0.2-0.3Mpa |
0.2-0.3Mpa |
|
Cylinder pressure |
0.5-0.6Mpa |
0.5-0.6Mpa |
|
Power supply voltage |
Single phase 220V 50HZ (customized according to customer requirements) |
1 or 3 phase 220V 50Hz/60Hz (customized according to customer requirements) |
FAQ
Q1: Why choose Seveneh equipment as business partner?
A: Our factory has rich experience in manufacturing packaging equipment. Excellent pre-sale and after-sale services, so you can trust us absolutely.
Q2: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q3: Can you send me the machine video?
A: Yes, we can. We have video to show how it works.
Q4: How about technical support?
A: 1. Provide OEM service according to customer requirement.
2. Provide consultation and technology support before selling and long-term technical guide after sales.
Q5: How about warranty?
A: All products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
Q6: What are your terms of payment?
A: We accept TT/PAYPAL/Western Union, every payment term we can discuss.
