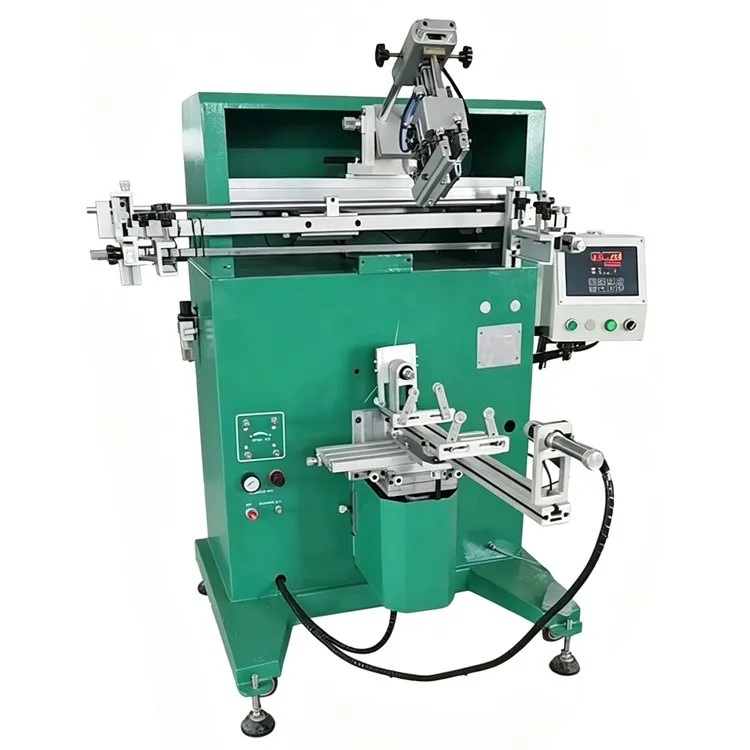

Features And Advantages
This curved screen printing machine has the following features and advantages:
Comprehensive functions, capable of printing on cylindrical, conical, and large arc surfaces.
All positions are controlled by photoelectric sensors, ensuring accurate positioning and superior performance.
Stable performance; the entire machine is controlled by a microcomputer controller.
Two preset function programs are available according to customer needs: single-cycle printing and fully automatic printing.
Uses imported pneumatic components, providing smooth, powerful, and durable operation.
The operation panel features a sensitive touch control, allowing direct selection of function programs; it is responsive and easy to use.
Parameters As Follows
|
Model |
LS-300S |
LS-300E |
LS-400E |
LS-500E |
|
Max printing diameter |
Φ≤90mm |
Φ≤90mm |
Φs110mm |
Φ≤150mm |
|
Max printing speed |
1200pcs/hr |
1200pcs/hr |
1000pcs/hr |
1000pcs/hr |
|
Air consumption |
90~110 litre/min (6 bar) |
|||
|
Voltage |
10/220V 60/50Hz |
|||
|
Dimensions |
800x750x1200mm |
850x800x1300mm |
700x1000x1310mm |
800x1100x1400mm |
|
Weight |
85Kg |
95Kg |
140Kg |
155Kg |
|
Model |
LS-600E |
LS-700E |
LS-800E |
LS-1200E |
|
Max printing diameter |
Φ≤180mm |
Φ≤220mm |
Φ≤250mm |
Φ≤310mm |
|
Max printing speed |
800pcs/hr |
800pcs/hr |
800pcs/hr |
500pcs/hr |
|
Air consumption |
90-110 litre/min (6 bar) |
|||
|
Voltage |
110/220V 60/50Hz |
|||
|
Dimensions |
950x1200x1450mm |
970x1600x1550mm |
1020x1650x1550mm |
1650x1500 x1550mm |
|
Weight |
180Kg |
210Kg |
230Kg |
260Kg |
FAQ
Q1: Why choose Seveneh equipment as business partner?
A: Our factory has rich experience in manufacturing screen printing machine and pad printing machine. Excellent pre-sale and after-sale services, so you can trust us absolutely.
Q2: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q3: Can you send me the machine video?
A: Yes, we can. We have video to show how it works.
Q4: How about technical support?
A: 1. Provide OEM service according to customer requirement.
2. Provide consultation and technology support before selling and long-term technical guide after sales.
Q5: How about warranty?
A: All products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
Q6: What are your terms of payment?
A: We accept TT/PAYPAL/Western Union, every payment term we can discuss.
